Optianal 3G 4G WiFi Temperature Data Logger With Free Web Cloud Server

WiFi temperature data logger with free web cloud server

System Feature

• Cortex M3 32-bit ARM
• Reliable performance with built-in double watchdog, 24×7 operation
• Support signal fileter
• Stable reconnection strategy for data transmit
• Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Event-based linkage programming, e.g. alarm linkage output
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Open-collector output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Remember status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Remain down status when power lost

AI feature

• Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Can set parameters for value processing, alarm, data transmission
• Signal lost alarm

SMS feature

• Support 10 cell phone numbers for alarm and control
• Sms alarm when any IO channel triggered or out of preset normal range
• Editable alarm and recover sms with time stamp
• Query any IO channel’s status or value via sms command
• On/off/pulse output by sending sms
• Configurable schedule for sms report IO channel's status or value
• Remote update parameters by sms
• Sms remind for sim card overdue
• Sms alar for power lost and recover

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Support post or respond mode for data communication
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Can forward data between wireless network with RS485 or RS232

Modbus feature

• polling salve over RS485 with modbus rtu protocol
• Can be a I O module to be read/write by modbus master
• Run Modbus RTU or TCP protocol over GPRS/3G

TI feature

• Can set high or lower level to alarm, data log via wireless network
• Fahrenheit or centigrade units for temperature
• Detect probe connect or disconnect to alarm

gsm temperature logger

gsm temperature data logger

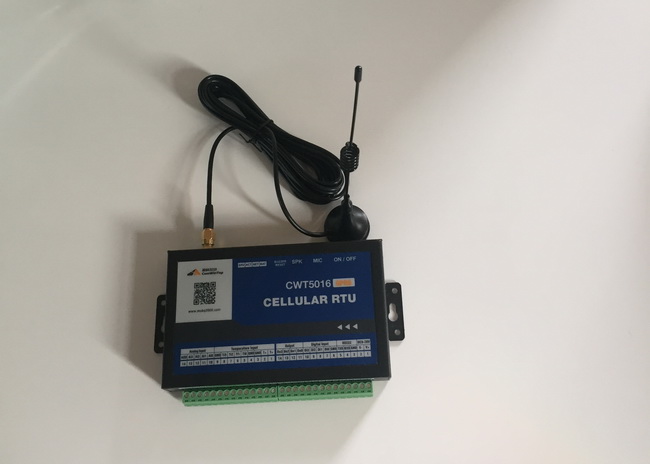

Optianal 3G 4G WiFi Temperature Data Logger With Free Web Cloud Server Images
