DIN Rail Mounting Modbus RTU IO Module Analog Digital Input Output SCADA

Support Analog Digital Input Output SCADA Modbus RTU With DIN rail mounting

System parameters

• Industrial MCU: 32-bit ATMEL ARM(72MHZ)
• OS adopt GCOS,10ms scheduling mechanism
• Isolation power supply DC7-35V @2W, reverse protection
• DIN-rail mounting or screw fixing
• Working Environment: T(-40℃～85℃),H(5%～95%RH)
• Protection IP20
• Watchdog 1.5m guard

Series port parameters

• With 1RS485 and 1RS232
• 2500V lightning protection,overvoltage, overcurrent, ESD protection
• Baud rate 1200～115200,default 9600.N.8.1
• MODBUS RTU Protocol

Analog input

• Default 4～20mA input, support 0～20mA/0～5/1～5/0～10V(open housing to jump)
• 16 bit high Precision
• Refresh rate 0.01m

Digital input

• Accept DC voltage level(ON signal level 5-30VDC,6mA@24VDC)
• OFF signal level 0-3VDC
• opto-couple, 2500V lightning protection, overvoltage, overcurrent protection
• Refresh rate 0.01m

Digital output

• Output type: normal open relay
• Relay and Opto-couple double isolation
• Relay contact load 5A/250VAC, 5A/30VDC
• Response time ≤0.01s

PT100 Input

• PT100 temperature probe input
• Temperature precision 0.1℃
• Temperature range -200℃ to 320℃

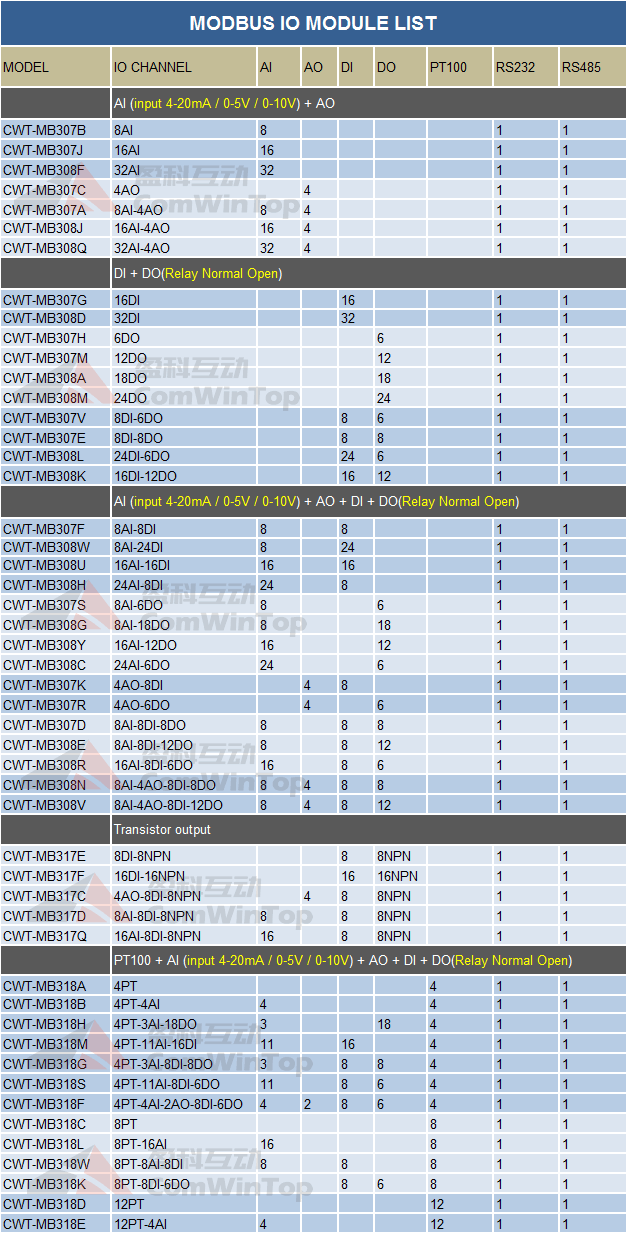

model list

Ethernet is optional for all models
